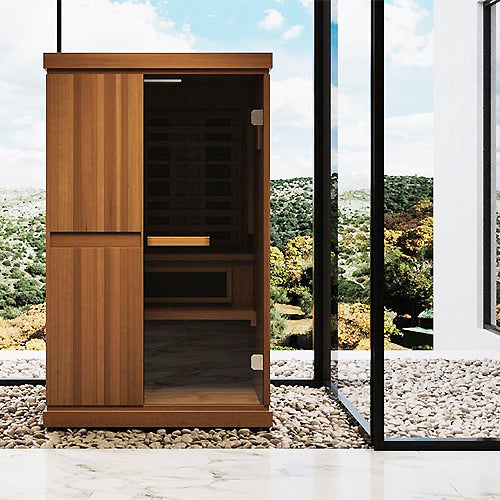

Finnmark FD-4 | 2-Person Hybrid Steam Indoor Sauna | FD-4 | Canadian Cedar

2-Person Home Sauna with Infrared & Traditional Heat 48.8"W x 48.8"D x 83.1"H

The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a Harvia Vega 120V traditional heater, plus true medical grade red light therapy.

No need to compromise. Finnmark’s FD-4 Trinity is the only combination sauna with true UL listed infrared heaters together with a traditional sauna heater. Get all the benefits of infrared combined with traditional rocks with steam.

Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.
The Harvia Vega traditional 1.9kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.

It’s a perfect enhancement to your sauna wellness ritual.

FEATURES

• Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.

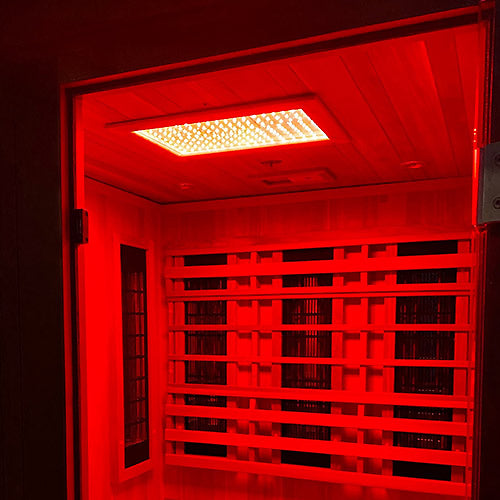

• Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.

• Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.

• Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Design's full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.

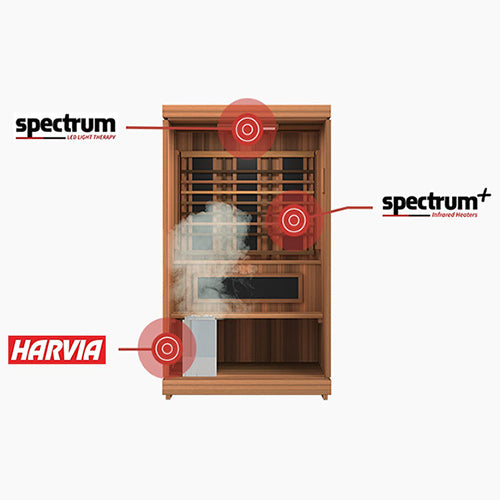

• 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.

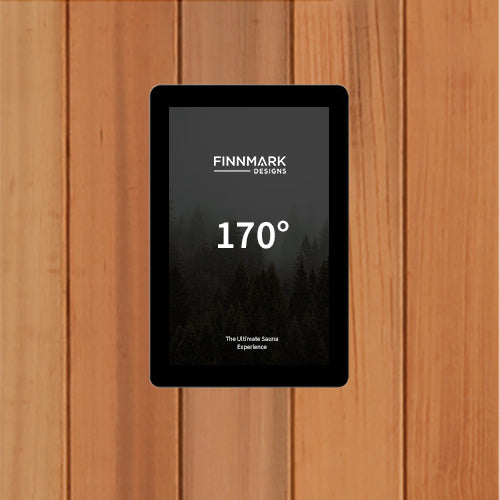

• Built-in LCD touchscreen controller with Bluetooth audio.

• Audio with 6"" HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.

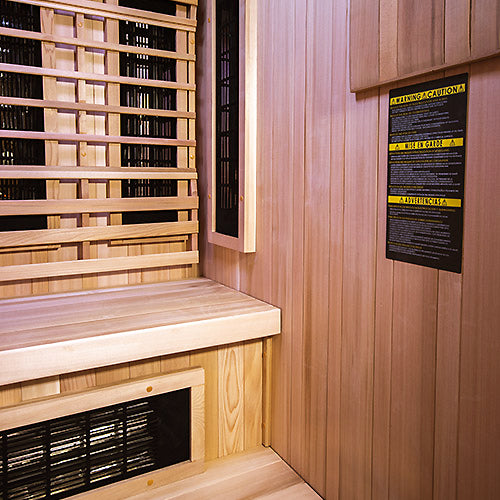

• Extra large two-tier bench system

• Low EMF sauna tested by a NASA award winning testing facility.

• High Emissivity infrared heaters

• Harvia Vega Compact 1900

• Wall-mounted design

• Stainless Steel construction

• 1.9kW

• For sauna rooms from 70 to 106 cu. ft.

• Requires a minimum of 29 lbs of sauna stones (1 Box-AC3000)

  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).

• Built-in controls

• Ergonomic operating switches

• Switches can be installed on the right or left side of the heater

• Designed, engineered, and made in Finland

• Dimensions: 11""W (279mm) x 11""D (279mm) x 21"" (533mm)

• 2-Year Warranty (Consumer use)

  • Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.


HEATING SYSTEM

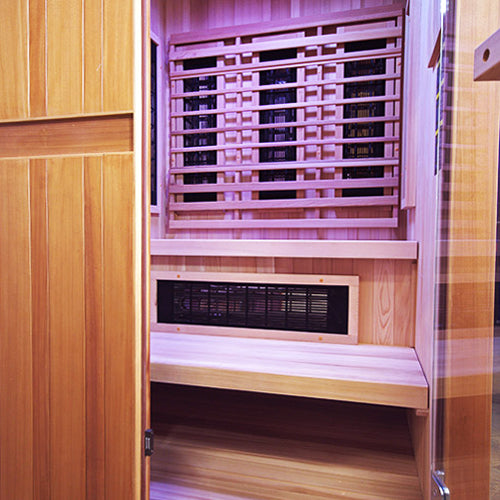

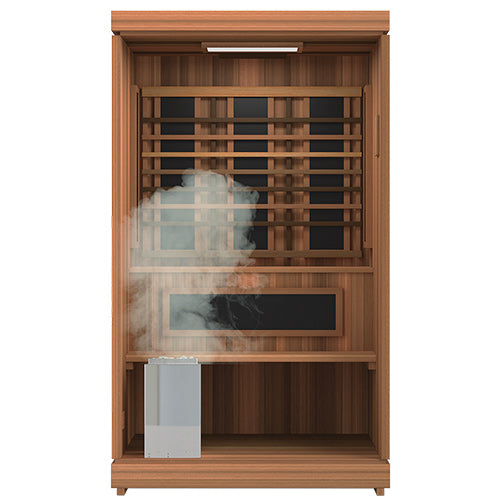

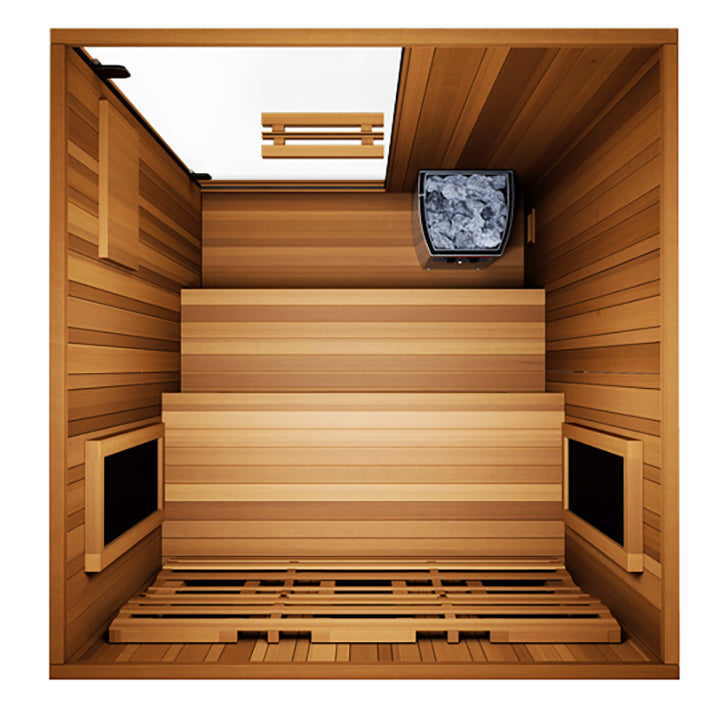

• Three Spectrum Plus dual wave heaters (far and mid) sit on the back wall, one sits under the bench and two on each side wall. The Harvia Vega Compact traditional heater sits on the front interior wall.

• Spectrum Plus heaters are UL Listed short wave infrared. Finnmark states these are the only heaters that have passed the tests needed by Underwriter Laboratories to be used in combination with a traditional steam sauna stove.

• Short wave far infrared penetrates muscles and joints and makes you sweat 25x more than typical carbon panel heaters.

• The Harvia Vega Compact 1900 is a 1.9 kW wall mounted stainless steel heater holding 13 kg of stones, rated for a sauna room of 2.0 to 5.0 cubic metres, with two 850 W / 120 V heating elements.

• The Spectrum Red Light Therapy LED panel produces 650nm of red light therapy combined with chromotherapy.

• Spectrum Plus heaters carry a third party tested Low EMF certification.

• Finnmark gives an estimated operational life of 40,000 hours for Spectrum Plus heaters and about 30,000 hours for carbon 360 heaters.

• Maximum infrared temperature is 170 degrees F.


INSTALLATION AND ELECTRICAL

• The FD-4 runs on two separate 120V circuits. The infrared heaters, the red light panel, the controller and the lighting plug into a standard 120V 15A outlet on a NEMA 5-15P plug. The Harvia Vega Compact traditional heater is supplied without a power cord and must be hardwired onto its own dedicated circuit by a licensed electrician, sized to its 15.9 amp load to local code.

• The infrared side is rated 1750 watts at 120v 15a and plugs into a standard 15a outlet. Plug type NEMA 5-15P.

• The Harvia Vega Compact 1900 traditional heater is rated 1.9kW at 120v 15.9a.

• The installation manual specifies a dedicated 15A circuit, receptacle type NEMA 5-15.

• The sauna is freestanding and self contained. It must not be built into any structure.

• Allow a minimum of 3 inches of clearance from the top wall and all sides.

• Place it on a solid, dry surface. It is intended for indoor use, and the floor must support the weight of all equipment.

• Panel assembly with M5 (5 x 68mm) and M4 (4 x 50mm) screws, with two bench levels, upper and lower.

• In the United States install to ANSI/NFPA 70. In Canada install to CSA C22.1.
